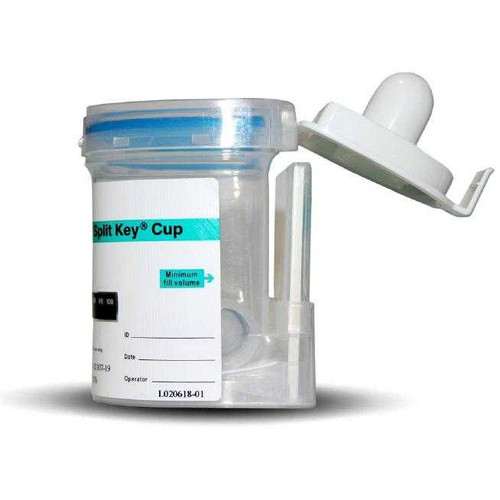

The E-Z Integrated Split Key Cup from Abbott Diagnostics / Alere Toxicology (formerly known as ACON / INNOVACON) is the first rapid response onsite testing device to offer a compact, split specimen format that is easy to use and administer because of its compact and oval shape front and squared back, the EZ Split Key Cup is easy to use for men and women. Split Specimen E-Z Cup is an innovative drug test cup design that eliminates urine handling and donor tampering, providing a unique and efficient approach for on-site testing. The E-Z Integrated Split Specimen drug test is initiated when the key is inserted into the cup which allows the operator to run drug tests at your convenience. The Integrated Split Key Cup is the first immediate response onsite testing device to offer a compact, split-specimen, fully integrated, self contained drug screening cup for detecting multiple drugs and drug metabolites existence in urine with the accuracy of laboratory tests in a shorter time. The E-Z integrated split specimen Key cup can be ordered with the combinations from 3 to 12 panel test cups. The test utilizes monoclonal antibodies to selectively detect elevated levels of specific drugs in urine. The Integrated E-Z Split Key Cup is a lateral flow chromatographic immunoassay for the qualitative detection of multiple drugs and drug metabolites in urine.
Features
- The Split Key Cup is easy to test and are less expensive
- The E-Z Integrated Key Cup specimen collector can activate the test with special key eliminating donor manipulation
- The E-Z Key Cup Label hides test result from those who do not need to view results
- The Fully Integrated cup design eliminates handling of the urine
- Split Specimen for Lab Confirmation
- Cut-offs levels of drug testing set according SAMHSA
- 12 to 18 Month Shelf Life
- FDA Cleared for Professional Use
- Available in CLIA waived and Adulteration Detection configurations
- 99% Accurate test results in 5 minutes
- No handling, dipping, tilting, or touching of the urine is required
- Leak proof snap top lid Integrated Temperature Strip Auto-Split sample for specimen integrity
- The Split Specimen test cup detects multiple drugs existence, as accurate as the laboratory tests in a shorter time
4 Panel EZ Split Key Cup Options (Choose Panel Above) | ||
Item Number | Drug Panels Tested | Adulterants Tested |
DOA-1247-019 | COC, mAMP, OPI, THC | NONE |
DUA-147-012-019 | COC, mAMP, OPI, THC | OX - Oxidants SG - Specific Gravity PH - pH Level |
Resources & Reference Documentation
E-Z Integrated Key Cup Drug Test Package Insert
E-Z Integrated Key Cup Drug Test Procedure
Test Panel | Calibrator | Cut-off |
---|---|---|
Amphetamine (AMP) | D-Amphetamine | 1,000 ng/mL |
Barbiturates (BAR) | Secobarbital | 300 ng/mL |
Benzodiazepines (BZO) | Oxazepam | 300 ng/mL |
Cocaine (COC150) | Benzoylecgonine | 150 ng/mL |
Methamphetamine (mAMP) | D-Methamphetamine | 1,000 ng/mL |
Methadone (MTD) | Methadone | 300 ng/mL |
Morphine (MOP 300 or OPI 300) | Morphine | 300 ng/mL |
Propoxyphene (PPX) | Propoxyphene | 300 ng/mL |
Marijuana (THC)11-nor-Delta9-THC-9 COOH50 ng/mL | ||
Methylenedioxymethamphetamine (MDMA) | d,l-MDMA | 500 ng/mL |
Buprenorphine (BUP) | Buprenorphine | 10 ng/ml |
Oxycodone | Oxycodone | 100 ng/ml |
Analytical Specificity | |
---|---|
The Integrated E-Z Split Key Cup Concentrations of Compounds (ng/mL) detected as positive in urine | |
AMPHETAMINE | |
d-Amphetamine | 1,000 |
d,l-Amphetamine | 3,000 |
l-Amphetamine | 50,000 |
Phentermine | 3,000 |
3,4-Methylendioxyamphetamine (MDA) | 2,000 |
BARBITURATES | CUT-OFF |
Secobarbital | 300 |
Amobarbital | 300 |
Alphenol | 150 |
Aprobarbital | 200 |
Butabarbital | 75 |
Butethal | 100 |
Butalbital | 2,500 |
Cyclopentobarbital | 600 |
Pentobarbital | 300 |
Phenobarbital | 100 |
BENZODIAZEPINES | |
Oxazepam | 300 |
Alprazolam | 196 |
alfa-Hydroxyalprazolam | 1,262 |
Bromazepam | 1,562 |
Chlordiazepoxide | 1,562 |
Clobazam | 98 |
Clonazepam | 781 |
Clorazepate | 195 |
Delorazepam | 1,562 |
Desalkylflurazepam | 390 |
COCAINE | |
Benzoylecgonine | 300 |
Cocaine | 780 |
Cocaethylene | 12,500 |
Ecgonine | 32,000 |
MARIJUANA | |
11-nor-Delta9 -THC-9 COOH | 50 |
Cannabinol | 20,000 |
11-nor-Delta8-THC-9 COOH | 30 |
Delta8 THC | 15,000 |
Delta9 THC | 15,000 |
METHAMPHETAMINE | |
d-Methamphetamine | 1,000 |
p-Hydroxymethamphetamine | 30,000 |
l-Methamphetamine | 8,000 |
Mephentermine | 50,000 |
3,4Methylenedioxymethamphetamine (MDMA) | 2,000 |
OPIATE | |
Morphine | 300 |
Codeine | 300 |
Ethylmorphine | 6,250 |
Hydrocodone | 50,000 |
Hydromorphone | 3,125 |
Levorphanol | 1,500 |
6-Monoacetylmorphine (6-MAM) | 400 |
Morphine 3-Betta-D-glucuronide | 1,000 |
Norcodeine | 6,250 |
Normorphine | 100,000 |
Oxycodone | 30,000 |
Oxymorphone | 100,000 |
Procaine | 15,000 |
Thebaine | 6,250 |
METHADONE | |
Methadone | 300 |
Doxylamine | 50,000 |
PHENCYCLIDINE | |
Phencyclidine | 25 |
4-Hydroxyphencyclidine | 12,500 |
METHYLENEDIOXYMETHAMPHETAMINE | |
3,4-Methylendioxymethamfetamin (MDMA) | 500 |
3,4-Methylendioxyamfetamin (MDA) | 3,000 |
3,4-Methylendioxyethylamfetamin (MDE) | 300 |
E-Z INTEGRATED SPLIT KEY CUP® - ALL INCLUSIVE CUP OPTIONS | ||
DOA-1237-019 | 3 Panel | COC, mAMP, THC (CLIA-waived) |
DOA-1247-019 | 4 Panel | COC, mAMP, OPI, THC (CLIA-waived) |
DUA-147-012-019 | 4 Panel | COC, mAMP, OPI, THC (OX, PH, SG) (CLIA-waived) |
DUD-157-012-019 | 5 Panek | AMP, COC, mAMP, OPI, THC (CR, GL, NI, OX, PH, SG) (CLIA-waived) |
DUD-157-023-019 | 5 Panel | AMP, COC, OPI, PCP, THC (CR, GL, NI, OX, PH, SG) (CLIA-waived) |
DOA-1257-019 | 5 Panel | AMP, COC, mAMP, OPI, THC (CLIA-waived) |
DOA-2257-019 | 5 Panel | AMP, COC, OPI, PCP, THC (CLIA-waived) |
DOA-3257-019 | 5 Panel | COC, mAMP, OPI, PCP, THC (CLIA-waived) |
DUE-167-711 | 6 Panel | AMP300, COC150, mAMP500, MDMA, OPI, THC (CR, OX, PH) |
DOA-1167-019 | 6 Panel | AMP, COC, mAMP, OPI, PCP, THC (CLIA-waived) |
DOA-2167-019 | 6 Panel | AMP, BZO, COC, mAMP, OPI, THC |
DOA-167-321-019 | 6 Panel | COC, mAMP, MDMA, OPI, OXY, THC |
DOA-177-161 | 7 Panel | AMP300, COC150, mAMP500, MDMA, OPI, PCP, THC (Lower Cut-Off) |
DOA-1187-019 | 8 Panel | AMP, BAR, BZO, COC, mAMP, OPI, PCP, THC |
DOA-21107-019 | 10 Panel | AMP, BAR, BZO, COC, mAMP, MDMA, MTD, OPI, PCP, THC |
DUA-1107-021-19 | 10 Panel | AMP, BAR, BZO, COC, mAMP, MDMA, MTD, OPI, PCP, THC (OX, PH, SG) |
DOA-1127-041 | 12 Panel | AMP, BAR, BUP, BZO, COC150, mAMP, MDMA, MOP, MTD, OXY, PPX, THC |
